edge
TRM 622
edge
TRM 622

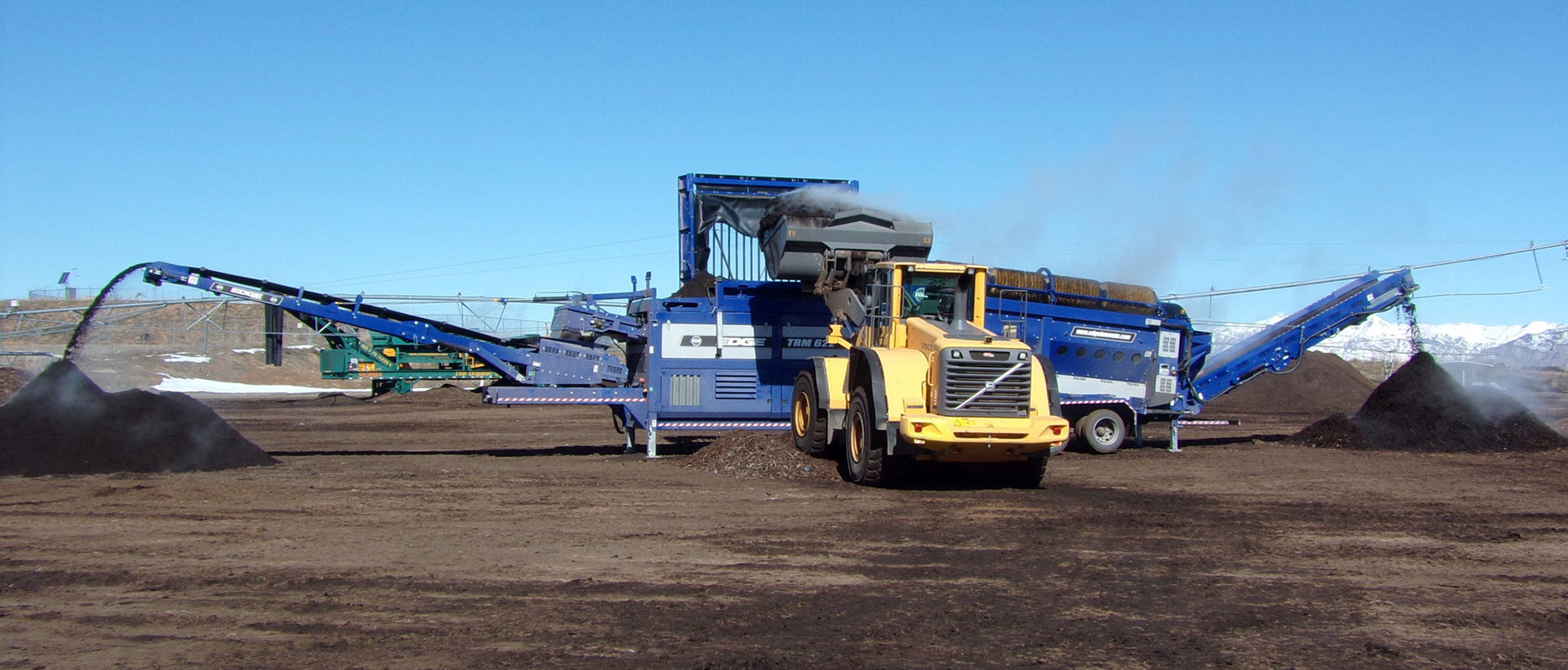

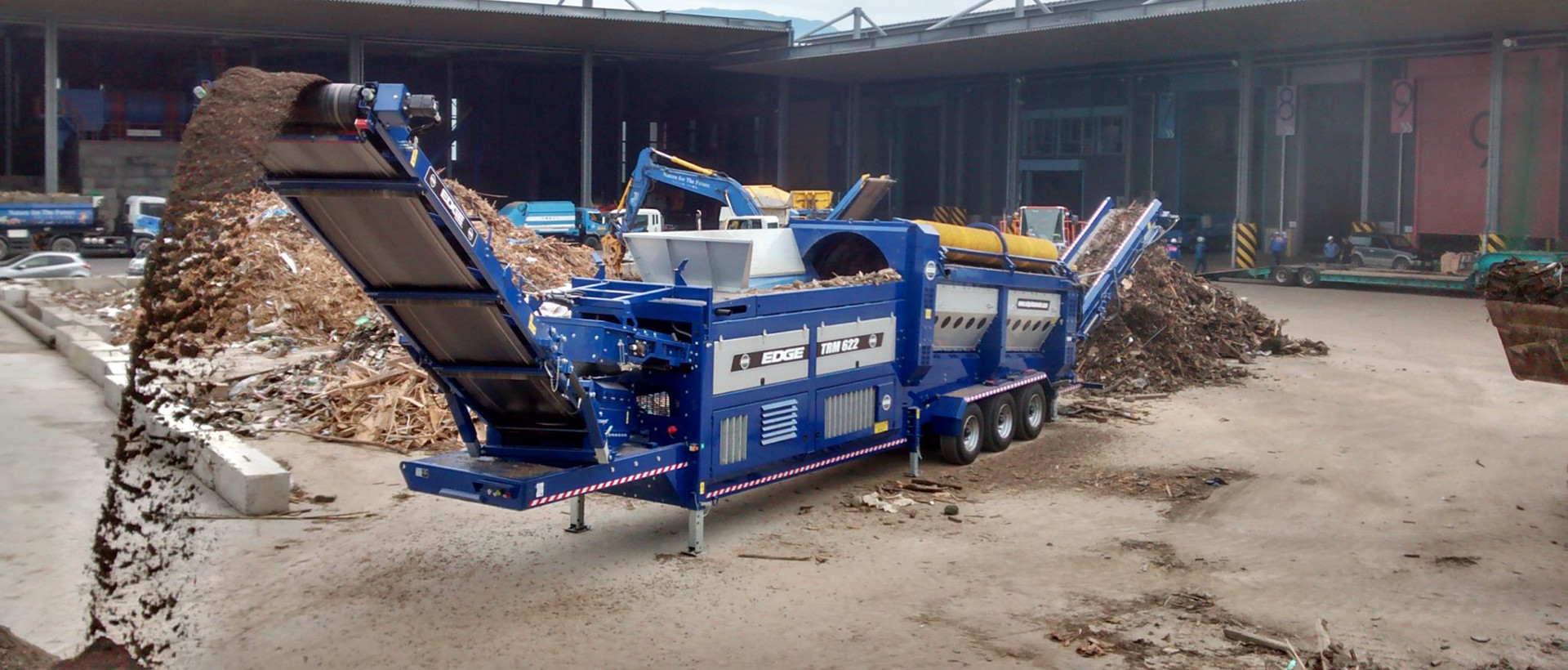

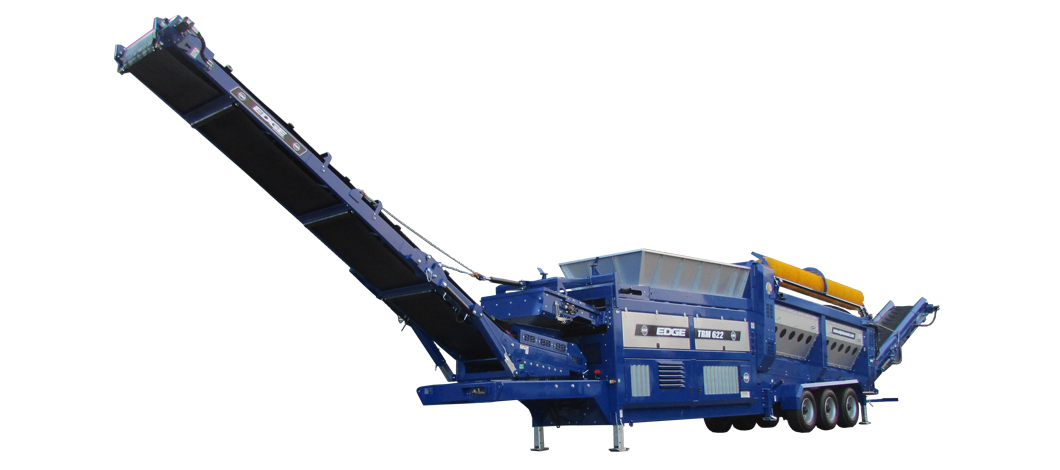

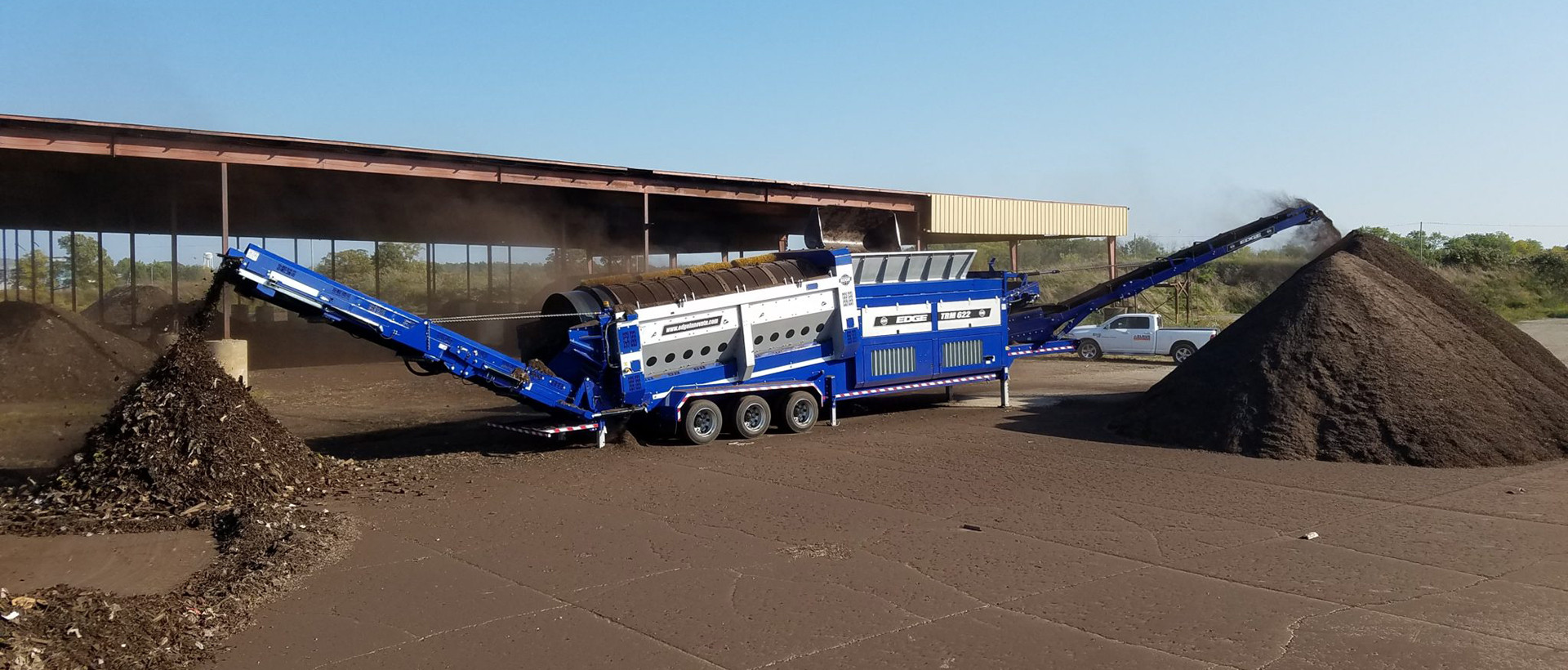

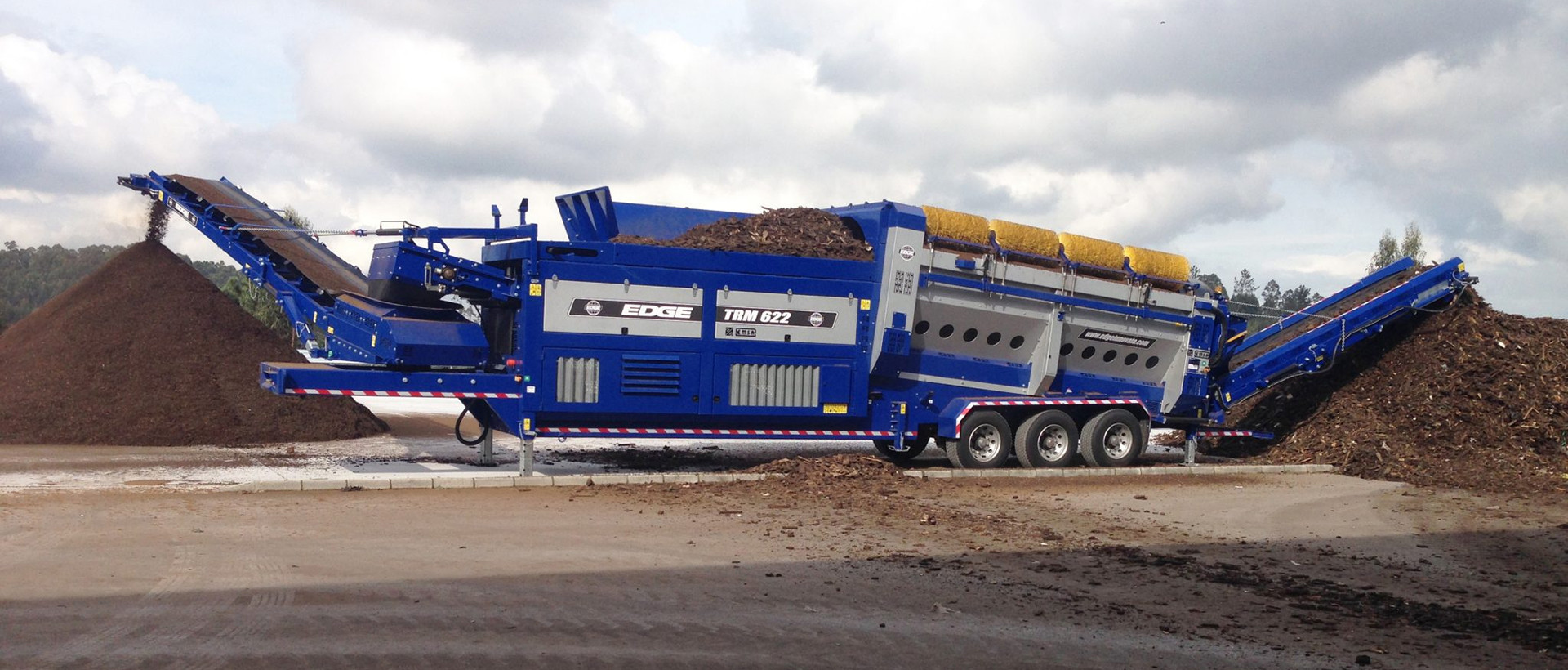

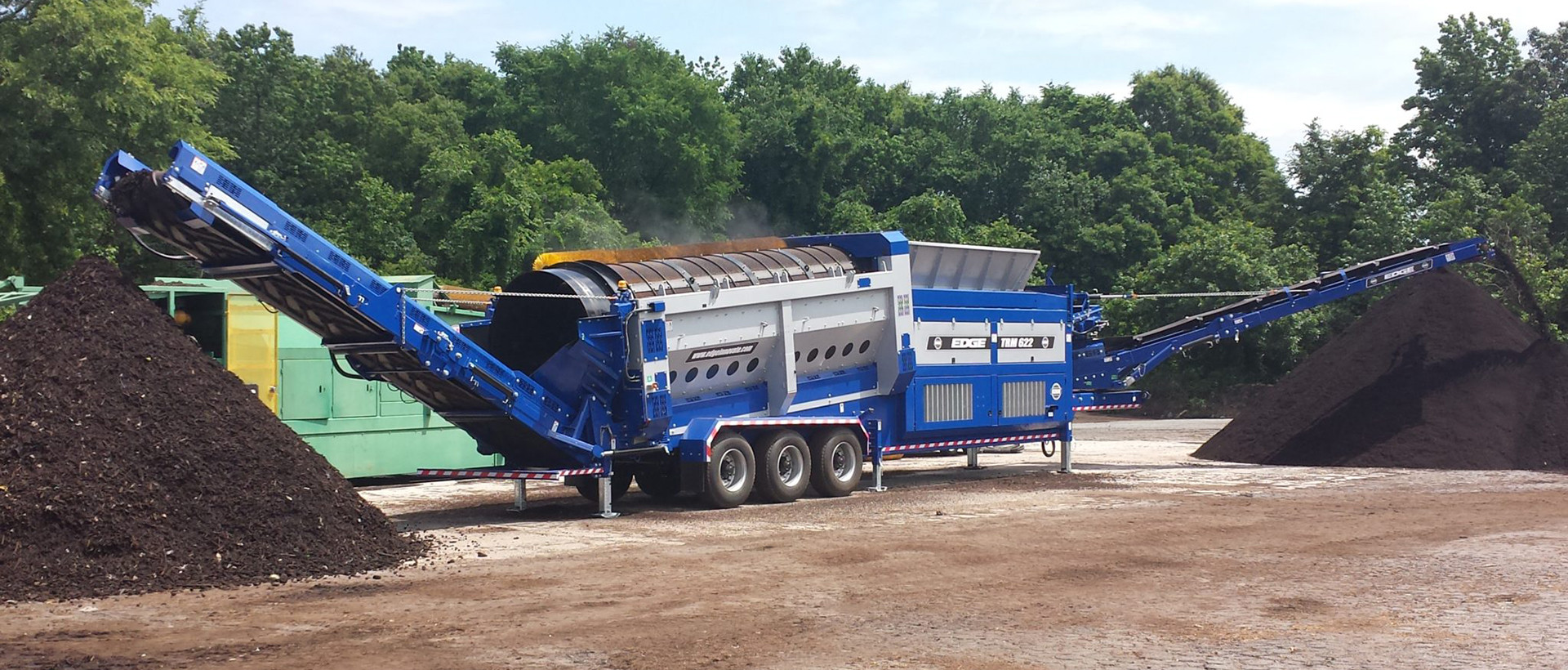

The EDGE TRM 622 mobile trommel screen combines high production rates with ease of use in a robust, portable and versatile screening plant that is ideal for applications such as top soil, recycling, composting and is proven in construction and demolition waste.
Highlights:
- 180° radial fines conveyor
- Load sensing hydraulic drive system
- Eco-power saving functionality
- User friendly HMI control panel
Weight
32.000 kg
Drum width
6.900 mm
Drum diameter
2.000 mm
Discharge height
5.900 mm
The all-rounder for soft and hard rock mining
- Trommel screen drum dimensions: 2,00 x 6,90 meters
- 180° radial fines conveyor with a variable discharge height of up to 5,90 m
- Intelligent load sensing to prevent drum overload
- 1.500mm wide collection conveyor and steep hopper sides eliminates material bridging
- Improved fuel efficiency with eco-power saving functionality
- Low power consumption: 12-15 l/h
- Innovative design of feeder conveyor allows for ease of drum removal and mesh change
- Adjustable screening angle
- Highly efficient maintenance
- Available in movable, tracked and static frame formats
